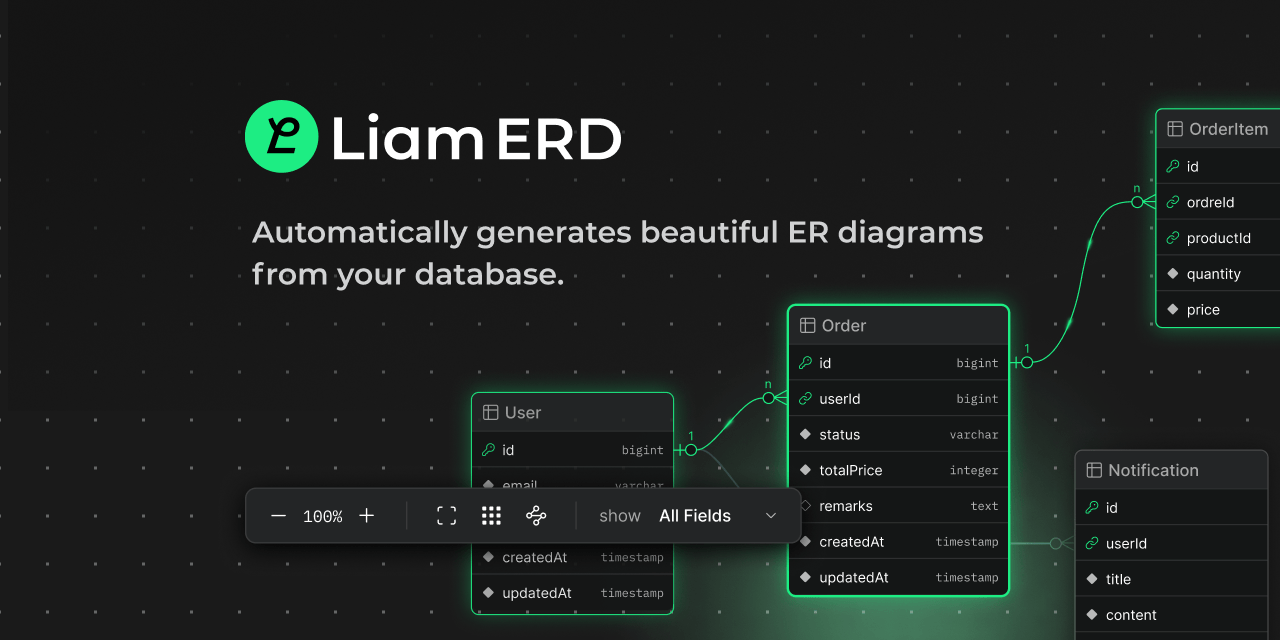

Introducing Liam ERD

We’ve developed a new database design tool called Liam ERD, and it’s finally here! Let us introduce it to you.

TL;DR

• We’ve released Liam ERD, a tool that automatically generates ER diagrams to visualize database table structures.
• Web Version: For public repositories, you can try prepending https://liambx.com/erd/p/ to the URL of a public schema file. For example, to view Mastodon’s schema: https://liambx.com/erd/p/github.com/mastodon/mastodon/blob/main/db/schema.rb.
• CLI Version: For private repositories, we also provide a guide for deploying with Prisma + GitHub Actions + Cloudflare Pages.

Why We Built Liam ERD

In software development, ER diagrams (Entity Relationship Diagrams) simplify visualizing and sharing database structures, making communication smoother. They help reduce onboarding costs for new team members, assist non-engineering roles like PdMs or customer support with explanations, and enable data analytics teams to understand table structures without reading product code.

While having ER diagrams as documentation is convenient, manually updating them with spreadsheets or diagramming tools is labor-intensive and prone to errors or omissions. That’s why it’s ideal to auto-generate ER diagrams from schema files committed to the project repository or metadata retrieved from a database connection.

Several tools already offer ER diagram auto-generation. For instance, tools using Mermaid.js or PlantUML generate images, but static images become hard to read for large, complex projects. Tools like SchemaSpy that output in HTML format also exist, but they often require extensive runtime and middleware dependencies, making integration into CI/CD pipelines challenging.

We wanted a CI/CD-friendly, easy-to-set-up, and highly readable ER diagram auto-generation tool—thus, Liam ERD was born.

Features of Liam ERD

Liam ERD has four key features:

• Modern and Interactive UI: Supports panning, zooming, filtering, and focusing for better interaction.
• High Performance: Works smoothly even with 100+ tables, with fast filtering.
• CI/CD Friendly: Easy to set up and deploy, compatible with many hosting services.
• Open Source & Community-Driven: Freely modifiable code with new features developed based on community feedback.

Let’s take a closer look at its features with some screenshots!

Liam ERD positions related tables close to each other, avoiding overly complex cardinality lines and ensuring a clean layout. Even for large-scale table structures, it provides excellent readability from the initial view.

Still, large-scale structures can be hard to grasp. Liam ERD highlights related tables and columns when hovering over a table, helping you quickly locate the tables you’re interested in.

Selecting a table brings up a detailed pane from the right, displaying comments on the table and columns, indexes, and a focused ER diagram of related tables.

Other subtle user experiences make it easier to grasp table structures. For example, here’s a link to the open-source social media platform Mastodon’s ER diagram, which includes about 99 tables. Check it out!

mastodon/db/schema.rb at main · mastodon/mastodon - Liam ERD

liambx.com

Using Liam ERD for Public Repositories

For public GitHub repositories, it’s incredibly easy to use. Just prepend https://liambx.com/erd/p/ to the URL of your schema file, and Liam ERD will render the ER diagram.

This allows you to view ER diagrams generated from the main branch schema. You can also replace main with a specific commit hash to render the ER diagram at that point in time.

Example: Prisma + GitHub Actions + Cloudflare Pages

While the above is the simplest usage, you might think, "This won’t work for our internal projects!" And you’d be right!

Liam ERD is also available as a CLI tool via npm, enabling you to generate ER diagrams locally or with GitHub Actions and host them easily.

@liam-hq/cli

www.npmjs.com

Here’s a practical example of deploying with Prisma, GitHub Actions, and Cloudflare Pages. We chose Cloudflare Pages because its Cloudflare Access feature makes it simple to restrict access, such as allowing only internal members.

First, prepare a schema.prisma like this:

// This is your Prisma schema file,
// learn more about it in the docs: https://pris.ly/d/prisma-schema

generator client {
  provider = "prisma-client-js"
}

datasource db {
  provider = "sqlite"
  url      = env("DATABASE_URL")
}

model User {
  id             Int           @id @default(autoincrement())
  email          String        @unique
  username       String
  password       String
  createdAt      DateTime      @default(now())
  updatedAt      DateTime      @updatedAt
  profile        Profile?
  posts          Post[]
  comments       Comment[]
  orders         Order[]
  notifications  Notification[]
}

model Profile {
  id          Int      @id @default(autoincrement())
  userId      Int      @unique
  firstName   String
  lastName    String
  bio         String?
  avatar      String?
  birthDate   DateTime?
  phoneNumber String?
  user        User     @relation(fields: [userId], references: [id])
}

model Post {
  id        Int       @id @default(autoincrement())
  title     String
  content   String
  published Boolean   @default(false)
  createdAt DateTime  @default(now())
  updatedAt DateTime  @updatedAt
  authorId  Int
  author    User      @relation(fields: [authorId], references: [id])
  comments  Comment[]
  tags      Tag[]
}

model Comment {
  id        Int      @id @default(autoincrement())
  content   String
  createdAt DateTime @default(now())
  updatedAt DateTime @updatedAt
  postId    Int
  authorId  Int
  post      Post     @relation(fields: [postId], references: [id])
  author    User     @relation(fields: [authorId], references: [id])
}

model Tag {
  id    Int    @id @default(autoincrement())
  name  String @unique
  posts Post[]
}

model Product {
  id          Int      @id @default(autoincrement())
  name        String
  description String
  price       Decimal
  stock       Int
  createdAt   DateTime @default(now())
  updatedAt   DateTime @updatedAt
  orderItems  OrderItem[]
  categoryId  Int
  category    Category @relation(fields: [categoryId], references: [id])
}

model Category {
  id       Int       @id @default(autoincrement())
  name     String    @unique
  products Product[]
}

model Order {
  id         Int         @id @default(autoincrement())
  userId     Int
  status     OrderStatus @default(PENDING)
  totalPrice Decimal
  createdAt  DateTime    @default(now())
  updatedAt  DateTime    @updatedAt
  user       User        @relation(fields: [userId], references: [id])
  orderItems OrderItem[]
}

model OrderItem {
  id        Int     @id @default(autoincrement())
  orderId   Int
  productId Int
  quantity  Int
  price     Decimal
  order     Order   @relation(fields: [orderId], references: [id])
  product   Product @relation(fields: [productId], references: [id])
}

model Notification {
  id        Int      @id @default(autoincrement())
  userId    Int
  title     String
  content   String
  read      Boolean  @default(false)
  createdAt DateTime @default(now())
  user      User     @relation(fields: [userId], references: [id])
}

enum OrderStatus {
  PENDING
  PROCESSING
  SHIPPED
  DELIVERED
  CANCELLED
}

Then, create a Cloudflare Pages project using Wrangler with the following command:

wrangler pages project create prisma-with-cloudflare-pages

Next, add the following GitHub Actions workflow file:

name: prisma-with-cloudflare-pages
on:
  push:
    branches:
      - main
    paths:
      - prisma/schema.prisma

jobs:
  build-and-deploy-erd:
    runs-on: ubuntu-latest

    permissions:
      contents: read
      deployments: write

    steps:
      - uses: actions/checkout@v4
      - name: Generate ER Diagrams
        run: npx @liam-hq/cli erd build --input prisma/schema.prisma --format prisma
      - name: Deploy ERD to Cloudflare Pages
        uses: cloudflare/wrangler-action@v3
        with:
          apiToken: ${{ secrets.CLOUDFLARE_API_TOKEN }}
          accountId: ${{ secrets.CLOUDFLARE_ACCOUNT_ID }}
          command: pages deploy ./dist --project-name=prisma-with-cloudflare-pages
          gitHubToken: ${{ secrets.GITHUB_TOKEN }}

And that’s it—your ERD is deployed!

Since Liam ERD is built with Vite and React, it should be deployable on most hosting services with ease.

A sample repository used in this example is available here:

liam-erd-samples/samples/prisma-with-cloudflare-pages at main · liam-hq/liam-erd-samples

github.com

Currently, we support schema files for Ruby on Rails (schema.rb), Prisma (schema.prisma), and SQL DDL. We’re considering supporting other formats and welcome pull requests!

Our documentation also includes instructions for using Liam ERD with supported ORMs and RDBMS. Check it out: Supported Formats

Future Features

While Liam ERD currently focuses on visualizing table structures, we’re planning to add various database design features:

• Enhanced Documentation: Grouping aggregations (similar to tbls viewpoints) and adding comments.
• ERD Editing: Adding/editing tables and columns, with migration file generation for changes.
• Record Insights: Connect to a database, run simple SQL, and make table structures more accessible.
• Cloud Version: Private projects and real-time collaborative editing for teams.

As an open-source project, we need your contributions to make Liam ERD even better! Whether it’s reporting issues, suggesting features, or submitting pull requests, your help is invaluable.

If you like what we’re building, we’d love your support—please give our repository a ⭐️ on GitHub! Your encouragement helps us grow and continue improving.

You can track our roadmap here—feel free to upvote or provide feedback!

Try Liam ERD Now

That’s Liam ERD, a tool for effortlessly generating clear, readable ER diagrams. Give it a try!
